Home /Products/Chips Packing Machine/GD8-200 Food Pre-made Bag Automatic Food Rice Price Rotary Packing Machine

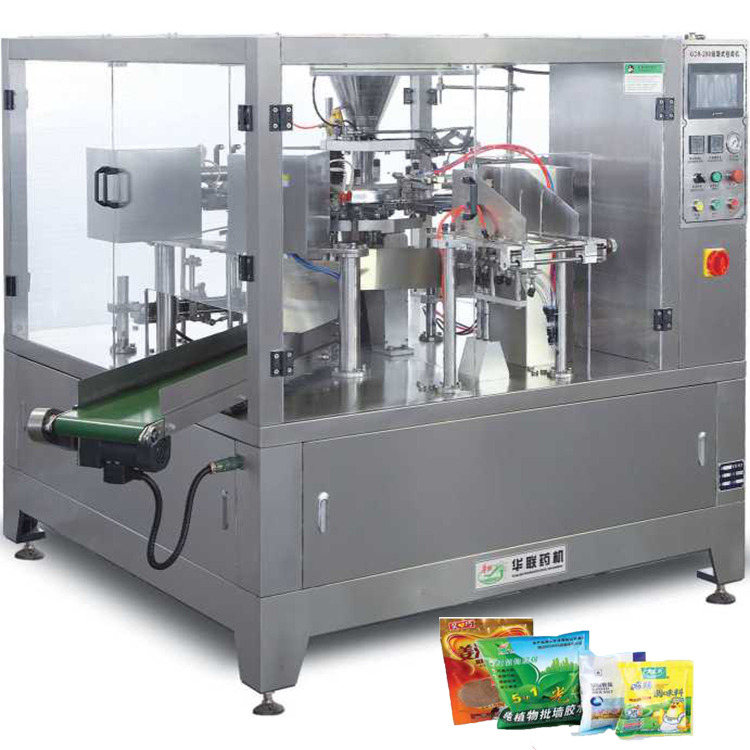

GD8-200 Food Pre-made Bag Automatic Food Rice Price Rotary Packing Machine

1.0 Pieces
MOQ
GD8-200 Food Pre-made Bag Automatic Food Rice Price Rotary Packing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Multi-Function Packaging Machine
Applicable Industries: Food & Beverage Factory
Showroom Location: None
Function: FILLING, Wrapping, Sealing
Application: Food, Beverage
Packaging Type: Stand-up Pouch, Pouch
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380v/220v, 380V 3phase 50HZ/60HZ
Dimension(L*W*H): 2100x1700x1750mm
Warranty: 1 Year
Key Selling Points: High-accuracy
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Machine Type: Pre-made Bag Rotary Packing Machine
Final Products: Specialized In Liquid And Thick Liquid, Massiveness, Powder
Production: 0-50bags/min
Overall Size: 2100x1700x1750mm
Power: 4KW
Machine Weight: 1100kg
Payment: 30%TT Deposit + 70%TT Before Delivery
Delivery: Within 40workdays After Received Deposit
After Warranty Service: Online Support
Local Service Location: None
After-sales Service Provided: Video Technical Support
Certification: CE,ISO
Basic Infomation
Certification: CE,ISO
Payment & Shipping Terms
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Products Description

Technical Charcters

Applied to detergent, rice wine, soy sauce, Vinegar, fruit Juice, ketchup, Peanut pulp, jam, chili sauce broad bean Paste, ketchup, fruit juice, hand Sanitizer; etc Applied to dried fruit chocolate candy, crackers strong nuts, peanuts, melon seeds, potato chips etc. Applied to chicken essence gourmet powder; salt, coffee, milk powder; granule, seasoning powder; etc
Parameter
Model
HLGD6-200/HLGD8-200 Rotary Packing Machine
Working Station
Six/Eight-working station
Weight
1100kg
Pouch Material
Laminated films PE、PP etc
Pouch Pattern
Stand-upz flat
Pouch Size
W:90-200mm L:100-350mm
Speed
<60pouchest/min（the speed depends on the product status and filling weight）
Voltage
380V 3phase 50HZ/60HZ
Total Power
4KW
Compress Air
0.6m3/min（supply by user）
Name
Model
Quantity
PLC
1 set
Touch screen
TP170A
1
Frequency converter
ATVT11HV18M2A
1
Vacuum pump
KRX6-9-V-03
1 set
Coding machine
1 set


The electromagnetic valve
AW30-02B-X465A
1
SY5120-5G-01
8 pcs
VQ21A1-5GC8-F
2
VP342R-5GR-02A
3




Cylinder
CG1BA50-25
2
CG1FN20-25
2
CG1BA32-30
1
CQ2B25-10DC
1
CG1BN50-50
1
CM2B40-70
1
Temperature Controller
HYTG-6401
2
Sucker
ZP20BS
3
4 pcs
Cam bearing
11
Linear Bearings
18
Limit switch
I2-D4NK-M
11
Photoelectric switch
BZ-2RW-J68
2
According to the specific conditions of the site, materials, etc., it is equipped with a multi-head scale, hoist and high
platform.
Application
Certifications
Our Service
Comany Profile
FAQ
1 Q: Are you trading conpany or manufacturer? A: We are manufacture. 2 Q: What is your terms of packing? A: Generally, we pack our goods in hard brown box for small machine and plywood box for big machine. 3 Q: What is your terms of payment? A: Payment≤10000 USD, 100% T/T in advance. Payment≥10000 USD, 50% T/T in advance, balance before shipment. 4 Q: What is your terms of delivery? A: Sea shipping, air shipping 5 Q: How about your delivery time? A: 7-25 days after receiving down payment. The specific time depends on the items and the quantity of your order. 6 Q: Can you produce according to the samples testing? A: Yes, we can make testing by your sample or technical drawing. 7 Q: Do you test all your goods before delivery? A: Yes, we test at least 5 times before shipping and running for 1 day or more. 8 Q: Warranty and after sales service A: We provide 1 year warranty free for spare parts, Whole life technical support.
