Home /Products/Nut Packing Machine/Automatic Cashew Nuts Stand-up Doypack Packaging Machine

Automatic Cashew Nuts Stand-up Doypack Packaging Machine

1 Set
MOQ
$13,900.00(1 - 2 Sets) $13,500.00(3 - 4 Sets) $12,900.00(>=5 Sets)
Price
Automatic Cashew Nuts Stand-up Doypack Packaging Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Multi-Function Packaging Machine
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Weight (KG): 500
Showroom Location: None
Condition: New
Function: FILLING, Labeling, Sealing
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
Packaging Type: Stand-up Pouch, Bags, Film, Pouch
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V Or 380V
Dimension(L*W*H): 1217*1015*1343mm
Warranty: 1 Year
Key Selling Points: High-accuracy
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: PLC
Production Capacity: 40bag/min, 50bag/min, 30bag/min
Filling Range: 150~1500ml
Bag Width: Max.300mm
Bag Length: Max.400mm
Packing Speed: Max.30bags/min
Basic Infomation
Payment & Shipping Terms
Packaging Details: plywood packing case
Supply Ability: 200 Set/Sets per Month
Product Description

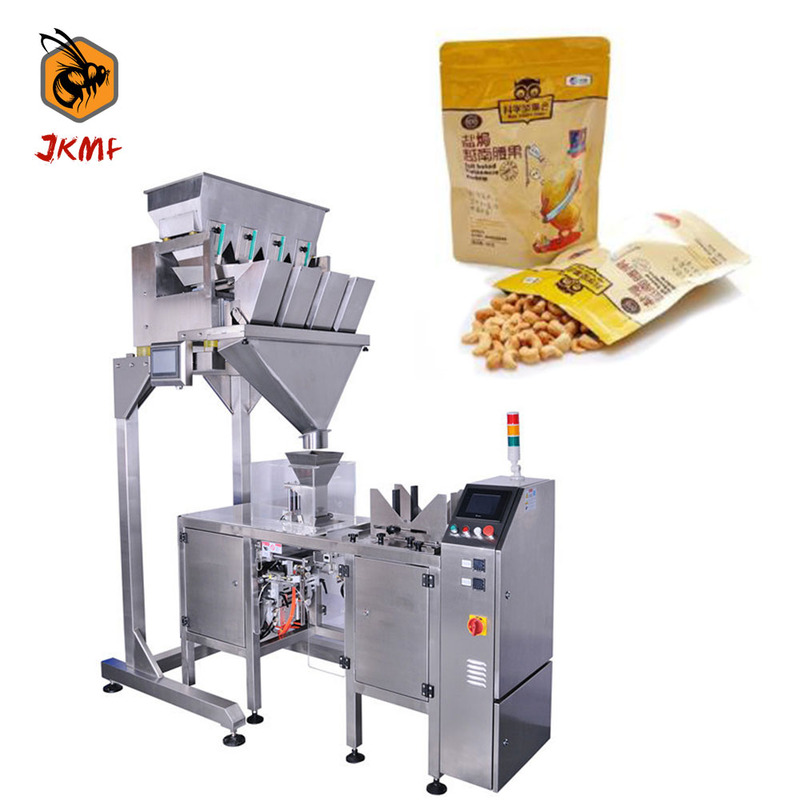

Automatic Cashew Nuts Stand-up Doypack Packaging Machine
Products Description
The DOYPACKER Entry Level Premade Mini Doypack Pouch Packaging Machines fill and seal pre-made pouches in one automatic process and a cost-effective solution to get away from costly and labor-intensive manual bagging to the world of affordable and reliable
automation technology.
JKMF offers cost-effective DOYPACKER packaging systems for pre-made pouch packing of grains, powders, and liquid products.
This machine is of a small footprint based on a space-saving design concept that can be interfaced with different kinds of fillers. Specially designed and developed for packaging food products, such as nuts, candies, cereal mix, condiments, coffee powder, paste, liquids, cheese, etc
The machine consists of multiple bag detection proximity switches at various points in the cycle to ensure correct bag placement and bag opening. The machine is intelligent enough to detect a rejected damaged bag and is ejected from the machine and the packaging process continues without interruption. The rejected bag can be reused if found good and re-usable by an operator. The heart of the machine control system is a Mitsubishi Programmable Logic Controller (PLC) system to control it and also for coordinating the integration of all high-quality packaging components with accurate results.
Machine Information
Model
320L
420L
Bag size
W：130~280 mm
L：130~300 mm
W：130~300mm
L：130~400mm
Packing speed
Max.30bags/min
Air consumption
7.0 CFM @ 80 PSI
Power
220V, 50HZ
Pneumatic Parts
PIAB Vacuum Gnerator, Pneumatics component,
Airtac from Taiwan
Optional Devices
Date coding printer, Air-filling device, Punching device

Main Features

1.The machine small size,light weight, there is no space restriction.
2.Four working procedures,low failure rate and high stability fast produceion speed, convenient combination,one button operation, can be used it immediately after bootingmno need for professionals to operate.
3.Can change to different pockets without adding accessrries,and can adapt toa variety of shaped bags.
4.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
5.Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
6.With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.
7.Fully customizable services, according to customer needs, replace or upgrade other brand electrical appliances configuration. logo customization, etc.
Details Images
JKMF doypack packing machine is easy to operate, with a unique combination of pneumatic and vacuum actuators, this machine individually collects each pouch. The pouches are then
rotated to the fill area where the bag is opened and placed in a filling position. It has an optional zipper opening mechanism for pre-made bags with zippers. After opening, the product enters the chute where the bag is being opened below. The machine sensor then detects the bag and upon successful bag detection in place, the chute opens its gate and enters the bag. Then, the product is immediately dispensed without spillage and protecting bag contamination. The bag sealing action then takes place and the sealed bag is released onto the takeaway or delivery conveyor.

Multilingual Touch Screen
The 7-inch touch screen can provide multiple languages and is easy to operate.

Pouch Magazine
The large-capacity magazine can be adjusted according to the size of the bag.

Weight Filling Hopper
Food-grade stainless steel material hopper ensures safe filling of materials.

Pouch Pick-up Cylinder
Powerful vacuum sucker to ensure accurate pick-up of the bag.

Auto Bag Opener and Bag Sealing Device
The bag is automatically opened, filled with materials, and then sealed at high temperature to ensure tightness.

Optional Devices

According to the requirements of the packaged materials, we provide you with a variety of weighing devices to choose from, 2-head linear scale, 4-head linear scale, 10-head combination scale, screw measuring machine, liquid metering pump, etc.
Why Choose Us
JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.
After acceptance by the customer, they are packed in international standard wooden cases and shipped.
Company Profile
Foshan Jike Bee Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.We are a production-oriented enterprises focused on product innovation, factory direct sales and perfect after-sales service in one.The automatic packaging equipment for granule, powder, liquid and sauce produced by the Jason company is at the advanced level of the industry,it can be customized production automatic material packaging line for all kinds of products .Mainly applicable to: food, hardware, drugs, daily chemicals, pesticides, fruits and vegetables, cosmetics, other industries.The company has its own patent and product technical certification, which can bring customers high quality equipment and worthy of customer trust.
Customer Photos
Our customers have covered more than 80 countries around the world.And give us unanimous praise.
Certifications
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
