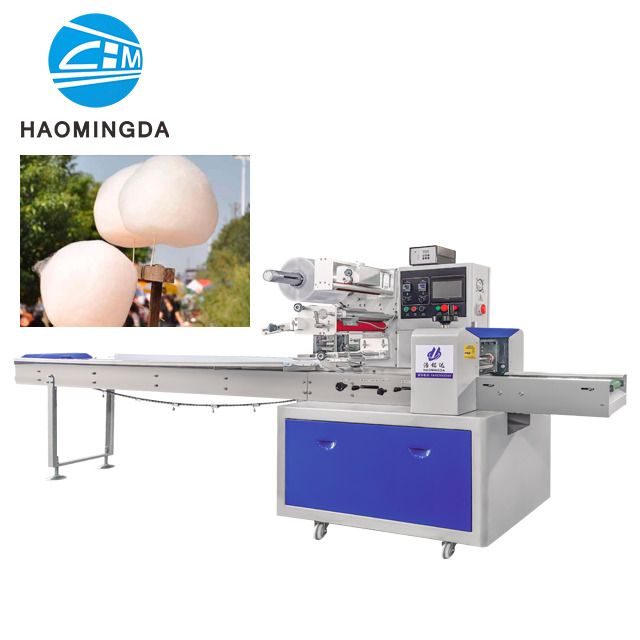

Packing Machine Single Cotton Candy Plastic Sachet High Speed Packing Machine

1.0 Sets
MOQ
Packing Machine Single Cotton Candy Plastic Sachet High Speed Packing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Multi-Function Packaging Machine
Applicable Industries: Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops
Showroom Location: None
Condition: New
Function: FILLING, Sealing
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type: Pouch
Packaging Material: Plastic
Automatic Grade: Semi-automatic
Driven Type: Electric
Voltage: 220V/380V
Dimension(L*W*H): 3370*670*1450mm
Warranty: 1 Year
Key Selling Points: Easy To Operate
Marketing Type: Ordinary Product
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: Not Available
Core Components: Motor, Gear, Bearing, Gearbox
Production Capacity: 50bag/min
Product Name: Cotton Candy Packing Machine
Bag Type: Pillow Bag
Usage: Bag Making
Film Material: Laminatied Film
Machine Type: Automatic Bag Forming Filling Sealing Machine
Material: 304 Stainless Steel / Carbon Steel
Packing Speed: 40-230 Bags/min
Optional Devices: Date Printer
Automaticity: Touch Screen Contrl
Power: 2.4KW
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
After-sales Service Provided: Field Installation, Commissioning And Training, Video Technical Support, Online Support
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: a.)Dedust & Cleaning b.) Lubricate Drive Parts c.) Divide Machine Into Modules d.) Wrap Modules With Plastic Film e.) Packing Modules Into Plywood Cases f.)Post Shipping Mark In The Cases if Any Special Requirements, We Will Pack It As Requested
Supply Ability: 200 Set/Sets per Month
Product Description
Packing Machine Single Cotton Candy Plastic Sachet
High Speed Packing Machine
Details Images

Main Performance And Structure Features:

The key parts of the machine are made of 304 stainless steel, which meets the food QS (production license) and pharmaceuticalGMP(pharmaceutical packaging) hygiene requirements.
Double frequency conversion control, bag length is set and cut immediately,noneed to adjust idling, one step is in place, saving time and film.
The high-sensitivity electric eye automatically tracks, no needto manually adjust after setting, the sealing and cutting size andposition are accurate, and the sealing is firm and beautiful.
Temperature independent PID (temperature controller) intelligent control, stable temperature control, better use of various
packaging materials.
Color touch screen display, positioning shutdown, automatic fault diagnosis function, the display is clear ata glance. Production is automatically counted, quantitatively determined, and packaging output is accurate and clear.
Themechanical design and transmission system are simple, the work is more reliable, and the maintenance is more convenient.

Applications:

Food: cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky,
eggroll, vegetable,etc

Machine Specification:

(We have several Models.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.)
Model
HMD-250
Film width
Max.250mm
Bag lenght
90-220mm
Bag width
30-110mm
Product height
Max.40-55mm
Film diameter
Max.320mm
Packing speed
40-230bag/min
Power
220v，50/60Hz，3.2kw
Machine size
4020*820*1450mm
Machine quality
400kg
Potional
Coding machine，gas-filling device，Fall bread machine，Richard machine

Chinese and English touch screen

Convenient operation, humanized interface, stable operation of the whole machine, accurate positioning, and fast machinerunningspeed.

Dual temperature control meter

Accurate measurement of horizontal and vertical sealing temperature, independent control of middle and end seals, suitableforpackaging of various materials

Linkage film reel

Adopting multi-linked film roll design to coordinate the film pulling process to make film roll smoother without film jam Adapttoroll film of different materials.

Custom bag maker

The film is folded and rolled by the metal panels on both sides to form a bag shape. The degree of folding can be
adjustedaccording to the width of the bag.

Cursor electric eye

Adopt the cursor electric eye to track the film color block, the tracking accuracy is up to 0.2mm

End seal cutting area

The constant temperature heat sealing cutter can seal the front and back ends of the packaged product, accurately cut theincision,and the seal is firm and beautiful.
